Trolleys

Highlights

  • Large capacity Achuk 101 extinguishers on wheels
  • High fire rating it its class
  • Fights Class A fires
  • Extremely effective on modern synthetic material fires
  • Suppresses smoke & retards rekindling of fire
  • High temperature performance up to 1100°C
  • Complete stainless steel body and accessories
  • Leak proof warranted for 10 Years
  • Available in 45 litres capacity

ORDER NOW

sp_01-1. Category:

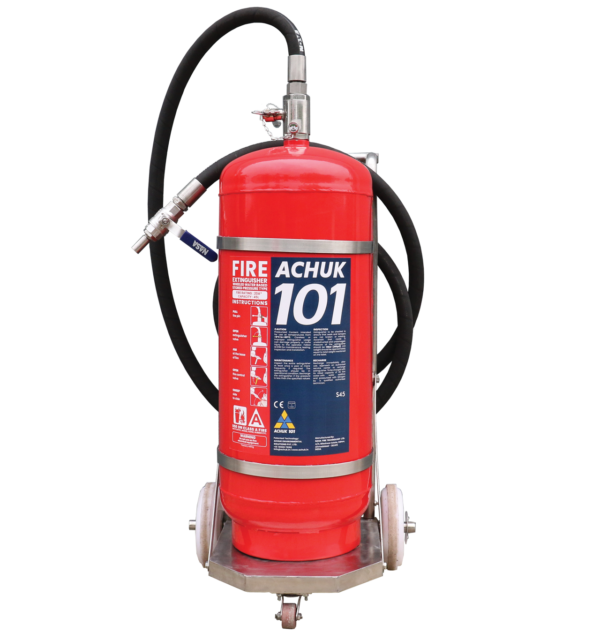

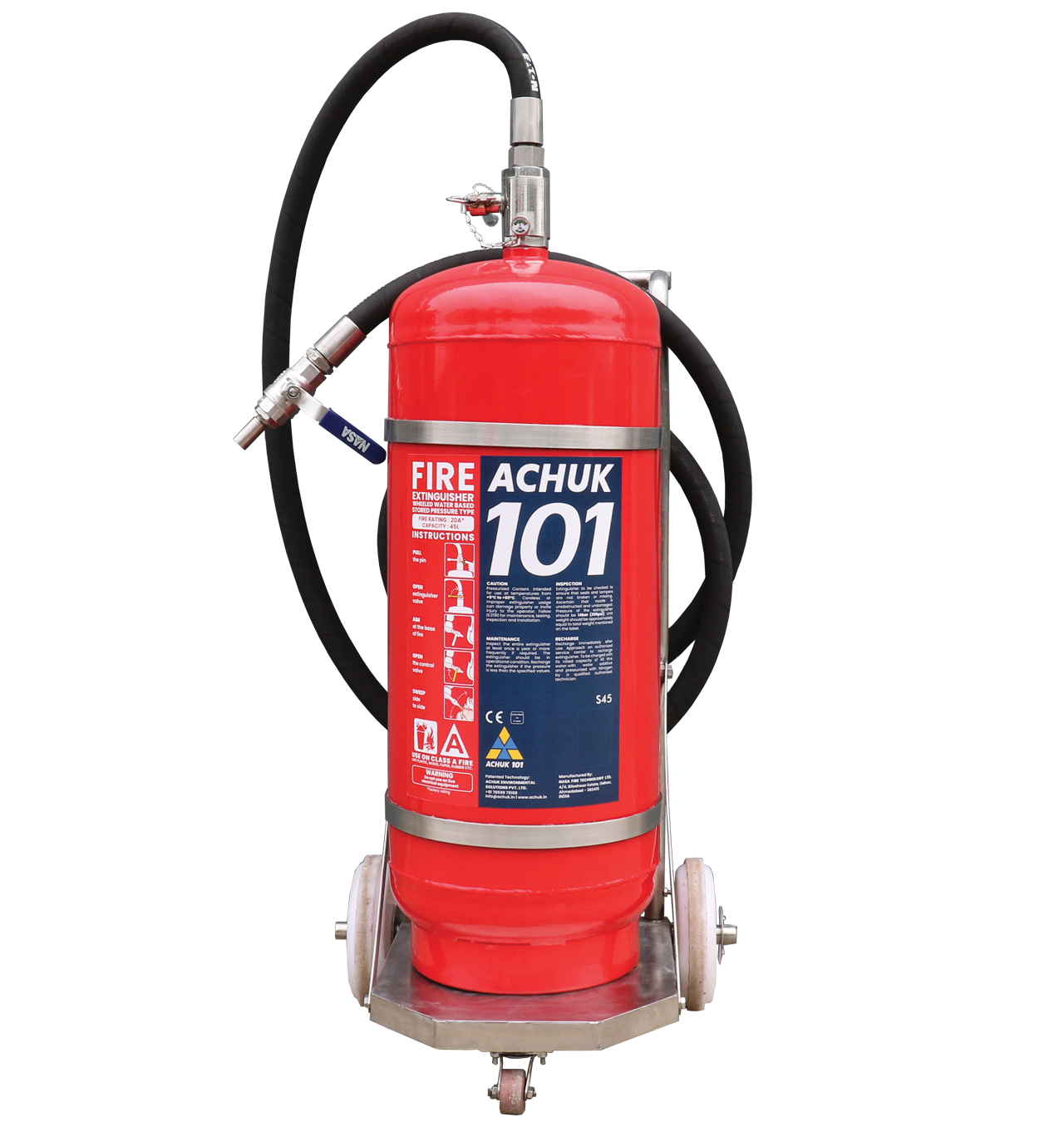

The first line of defense, the handheld extinguishers have limited storage capacity and can take on smaller fires. However sometimes the fire gets bigger and needs more fighting time. The trolley mounted Achuk 101 fire extinguishers play a critical role at such instances with their large capacity and easy mobility. They have the best of our Achuk 101 extinguisher capability, but on wheels.

The stainless steel body ensures a corrosion resistant, maintenance free product which is warranted for ten years of performance.

Download Brochure

Unique features

  • Achuk Inside – Most effective fire fighting composition for Class A Fires
  • Highest Performance – 20A* fire rating. Ability to fight high temperature fires up to 1100° C
  • Safety – Does not produce smoke or hamper visibility. Retards rekindling of fire
  • Triple Action – Instantly cools, cuts off oxygen and covers fuel
  • Works Everywhere – Use on horizontal and vertical surface fires
  • Achuk Cares – Does not harm the environment. Avoids oxygen depletion
  • Stay Assured – 10 year warranty, leak proof valve and long shelf life of Achuk composition.
  • Quality Guaranteed – CE certified. Conforms to BIS 16018 and manufactured under ISO standards.
  • Longest Life – Complete stainless steel body and corrosion free accessories requiring no maintenance or early replacement
  • Easy mobility – Strong wheels with least friction for quick and easy movement
  • Proudly Indian – Achuk Composition – Invented in India and patented globally

Application Areas

  • Textile, Rubber, Tyre, Plastic, Paper, Wood, Coal, Chemicals and other Class A fire areas
  • Useful at hospitals, schools, warehouses, factories, offices

Technical Specification

Technical Specifications – S45
Sr. No. Item Details
1 Main Container S.S. 304 Cylinder with 4 mm thickness
2 Valve Body SS 304
3 Discharge Mechanism Ball Valve mechanism with leak-proof design
4 Extinguishing Agent Water with Patented ACHUK composition
5 Delivery Mechanism Hose pipe and S.S. 304 convergent nozzle with manual shutoff control valve (4 meter)
6 Pressure Gauge Bourdon/Diaphragm type
7 Cylinder Pressure 14 bar
8 Test Pressure 35 bar
9 Range 10 to 12 meters
10 Operating Temperature Range +5°C to +55°C
11 Capacity 45 ltr.
12 Trolley Structure SS 304
13 Trolley Wheels UHMW or PPCP
14 Extinguishant Agent Life 10 years
15 Warranty1 10 years or until tamper-seal is broken
16 Discharge Time Minimum 30 seconds
17 Average Discharge Percentage > 97%
18 Fire Rating2 20 A
19 Propellant Gas Nitrogen
20 Certification CE Certified

1 Against manufacturing defects
2 Factory rating
